Punching and eyeletting machine 115-05

for inserting grip hole eyelets in binder covers

Separate punching and eyeletting tools punch the holes and set the eyelets in one stroke in a rapid, cam-controlled sequence of movements Easy to replace, automatic eyelet guide Set up for one eyelet size up to a maximum inner diameter of 25 mm Pressure compensation for processing different material thicknesses, differential range of 2 mm 3 point release of the rivet stroke with microswitches for precise positioning of the folder cover Adjustable side and rear stops Insertion depth 120 mm Electric part counter Drive with maintenance-free braking motor
115-05
Punching and eyeletting machine 115-05

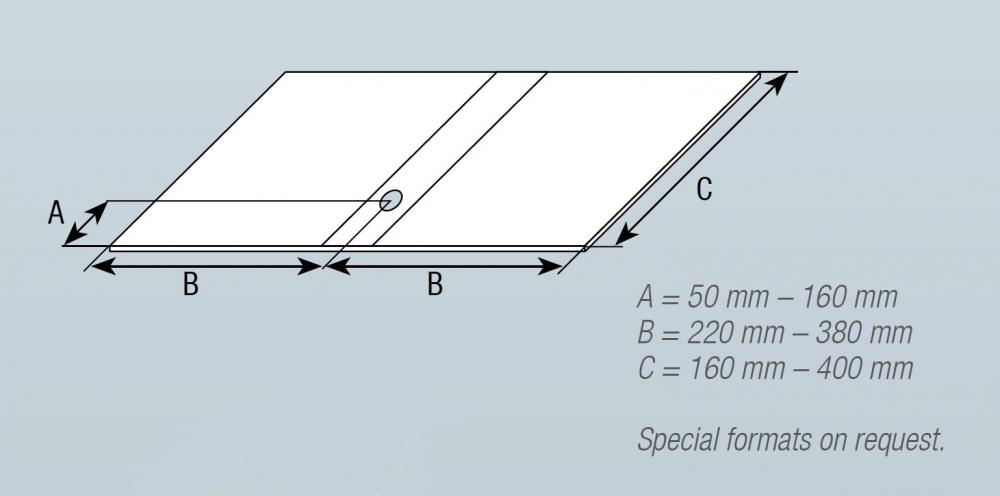

Formats 115-05
Formats 115-05
More options

Larger insertion depth up to 190 mm combined with foot switch

Also available for oval eyelets

Technical Data

Width mm 700
Height mm 1600
Depth mm 810
Weight kg 340
Working height mm 900
Electrical connection V 3ph. 230/400
Cycle time Sek. 1
Power requirement kW ca. 1,1
