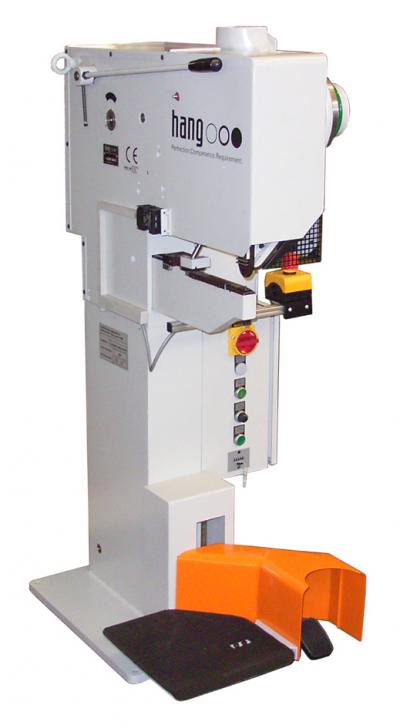

Fully-automatic riveting machine 194-01

For double hollow rivets with open rivet lower part or closed rivet lower part

  • Automatic feeding of the rivet cap to the upper tool with motor-driven rotating sorting container
  • Automatic feed of the rivet lower part to the lower tool with motor-driven rotating sorting container
  • Brake motor
  • Electric piece counter
  • Release with aiming device and foot lever
  • Working height 900 mm
  • Working depth 185 mm
194-01
Fully-automatic riveting machine 194-01


More options

Riveting force limiting to compensate for tolerances in the thickness of the workpieces (pressure compensation via disc springs)

Pneumatically operated pin control in lower tool for open rivet base parts

Level control in the rivet feed for fill level control

Rivet feed with electromagnetic sorting unit

Release via 2-handed switch

Laser pointer

Technical Data

Riveting force kN 10
Rivet stroke mm 40
Cycle time Sek. 1
Working height mm 900
Working depth mm 185
