Double riveting machine 105-05 / -06

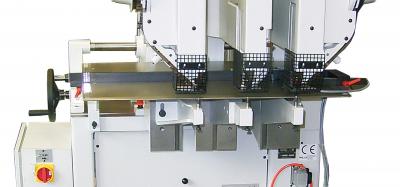

Triple riveting machine 150-25 / -26

For riveting mechanisms onto ring binders and lever arch file systems With braking motor drive Rivet feeders are designed for a rivet shaft diameter (with variable rivet shaft length and riveting head diameter tolerance of 2 mm) Standard configuration for working with hollow rivets with a 4 mm shaft diameter, length up to 19 mm, head diameter 6 - 8 mm or 8 - 10 mm Single riveting possible by shutting down the left (and middle) riveting head Adjustment of the rivet pitch via handwheel Fast and precise set-up thanks to integrated scales in the support table and easily adjustable stops Release via electric foot switch or via three microswitches in the rear and side stop, which enable fast and precise application With electric part counter
150-05 / 150-06 / 150-25 / 150-26
Double riveting machine 105-05 / -06
Modell 150-25 / -26
Modell 150-25 / -26
Variants Dimensions
Variants Dimensions
More options

Pivoting tool with stops for riveting lever mechanisms

Frontal, secured protective cage

Two-handed release

Level control in the rivet feed for fill level control

Technical Data

Unit 150-05 150-25 150-06 150-26
Rivet stroke mm 55 55 55 55
Cycle time Sek. 0,5 0,5 0,5 0,5
Rivet pitch adjustment range mm 35 - 440 35 - 440 35 - 440 35 - 440
Projection when released via foot switch mm 370 370 600 600
Projection when released via microswitch mm - - 540 540
- with standard stop mm 310 310 - -
- with standard stop mm 360 310 - -
Working height mm 1080 1080 1080 1080
Width mm 1160 1160 1160 1160
Depth mm 800 800 1050 1050
Height mm 1600 1600 1600 1600
Weight kg 550 / 600 550 / 600 600 / 700 600 / 700
Electrical connection 3ph. 230/400 V
50 Hz
3ph. 230/400 V
50 Hz
3ph. 230/400 V
50 Hz
3ph. 230/400 V
50 Hz
Power requirement kW 1,1 1,1 1,1 1,1
