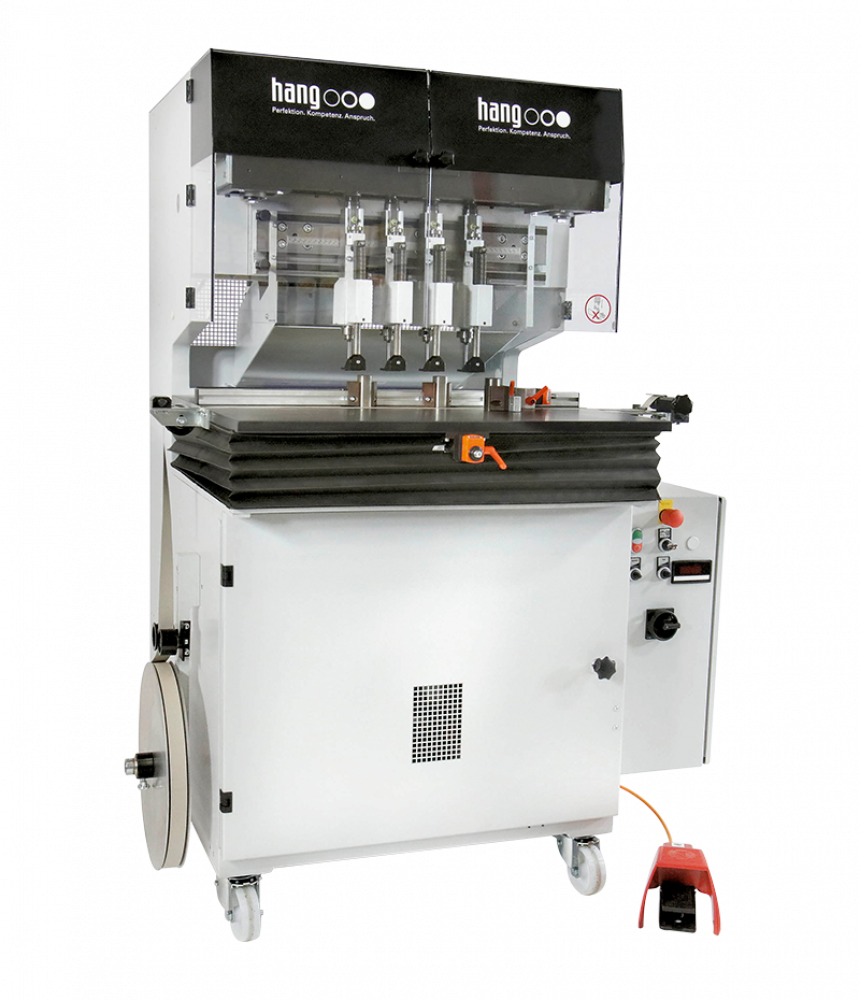

Multi-spindle drilling machines 207-00 and 207-10 for up to 10 drilling spindles

The drilling machines of the 207 series are characterised by extensive basic equipment and user-friendly features. There are many parallels between them and the 114-30, but in some important aspects the 207 is clearly superior. It is equipped with a tangential chain drive, which allows the drilling heads to be easily adjusted and replaced. Due to the large adjustment range of the drilling spindles, a considerable insertion depth of 300 mm and also due to the number of drilling heads - up to nine are possible - the application range of the 207 series is also considerably larger.

The drilling heads can be plugged into the machine through exchangeable indexing bars for all current standard hole patterns. This simplifies the changeover process and prevents errors when adjusting the centre distances Precision drilling heads, 1– 9 pieces Drill diameter 3 - -14 mm Adjustment range of drilling spindles from 36-460 mm (207-00) Adjustment range of drilling spindles from 36-700 mm (207-10) Maximum stacking height 65 mm (drill cutting length max. 70 mm) Individual drill bit length compensation (up to 6 mm) Large insertion depth 300 mm Quick clamping of the paper drill bit Infinitely variable drill speed with digital speed display, 260-1800 min-1 Infinitely variable table lift speed Fast return stroke Inching mode for setting up the machine Machine moveable on steerable rollers Depth and side stops for fine adjustment with position indicator (0.1 mm pitch) Depth and side stops with "Zero-slot" adjust themselves automatically to the table (insertion depth 285 mm) Working height 950 mm
207-00 / 207-10
Multi-spindle drilling machines 207-00 and 207-10 for up to 10 drilling spindles
Side and back stops for precise adjustment with position indicator for “zero-gap” and notched bars
Side and back stops for precise adjustment with position indicator for “zero-gap” and notched bars
Cam-controlled table stroke via linear guidings
Cam-controlled table stroke via linear guidings
More options

Manually cycled cardboard drilling base, 300 m long

Drill cooling and lubricating device incl. macro oil dosing and fogging unit, without compressor

Manually actuated sliding table (Model 207-00)

Drill diameter 3–20 mm (adjustment range 50-430 mm)

Table widening/extension

Special drill heads and multi-spindle drill heads

Two-handed release

Technical Data

Unit 207-00 207-10
Number of drilling heads Piece 2 - 10 4 - 15
Drill diameter mm 3 - 14 3 - 14
Adjustable drill offset mm 36 - 460 36 - 700
Maximum stack height mm 65 65
Insert depth (edge distance) mm 6 - 280 6 - 280
Table size mm 630x635 710x882
Drill speed variable min-1 250 - 1700 250 - 1700
Table lift speed, infinitely variable min-1 4 - 22 4 - 22
Working height mm 950 950
Net weight kg 1000 980
Noise level db(A) 82 82
Safety reverse switching
Faster table return stroke
Inching mode
Constant drill feed speed
Exact positioning of the drilling head for standard drill offset with indexing bar
Quick adjustment of drilling heads
Central drill length adjustment
Individual drill bit length compensation (up to 6 mm)
Drill quick-tensioner
Fixed table
Sliding table optional optional
Drill cooling and lubricating device optional optional
Cardboard band under drill, manually operated optional optional
Zero-slot stops
Side stop with fine adjustment via digital position display
Depth stop with fine adjustment via digital position
Side button stop (only in conjunction with fixed table) optional optional
Machine moveable with rollers
Drilling heads 50 mm wide for drill bit diameters up to 20 mm optional optional
Width mm 890 890
Depth mm 1075 1075
Height mm 1850 1850
