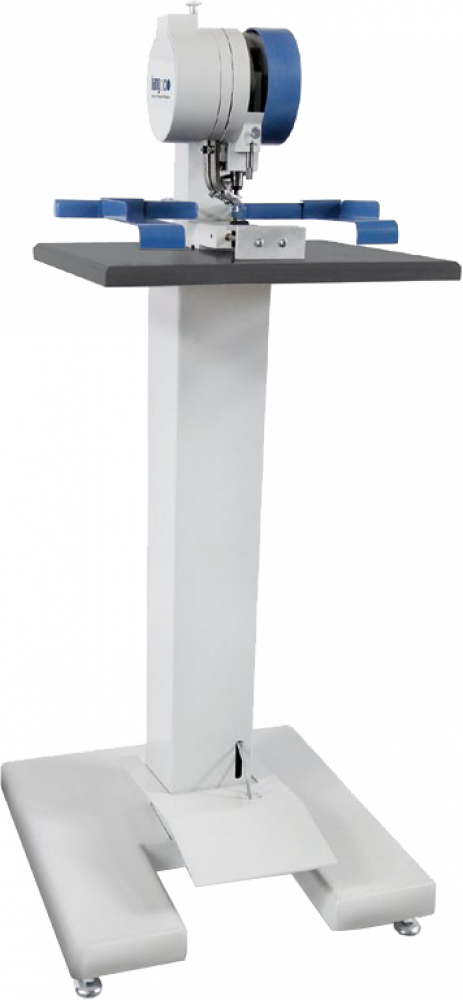

Piccolo 102-28
Single eyeletting machine for manual or foot operation. Suitable for paper, cardboard, plastic etc.
Ideal for contracts, certificates and labels Automatic eyelet feed Punches and eyelets in one work process (the eyelet punches the hole) Material support and adjustable rear and side stops guarantee exact positioning
Piccolo 102-28
Highlights
Available for one size of eyelet
In the range of an internal diameter of 3 - 7.5 mmWith self-punching eyelets:
Up to 30 sheets with 80 g/m2 paper or material thickness up to 3 mmWith pre-punched material:
Up to 80 sheets with 80 g/m2 paper or material thickness up to 8 mmEasy to change over for another eyelet size
in the range of 3 - 7.5 mm
More options
Technical Data
| Unit | 102-28 | 102-20 / 102-28 | |
|---|---|---|---|
| Working depth | mm | 55 | 55 |
| Width | mm | 500 | 500 |
| Depth | mm | 500 | 500 |
| Height | mm | 1150 | 1150 |
| Weight | kg | 44 | 44 |
